Calcium Fluoride Wafer Infrared Optics Window For a Range Of Laser, IR And UV Applications
Calcium Fluoride (CaF2) has good mechanical strength and moisture resistance, and it has a high transmittance in the band 0.15um~7.0um. CaF2 is widely used in laser, infrared, ultraviolet and high-energy detection fields. It is also a high-quality material for making optical components such as optical prism, lens and window. Its operating temperature under atmospheric pressure can reach 600℃, vacuum drying can reach 800℃.

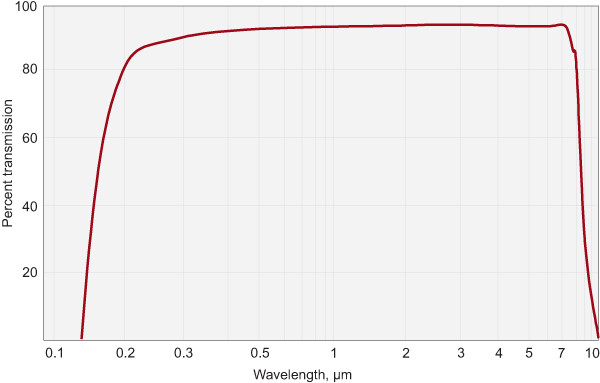

| Transmission Range | 0.15 - 7.0 microns |
| Internal Transmission | >99.5% from 193nm to 7µm |
| Refractive Index Homogeneity | Range 3 to 15ppm @632.8nm PV |
| Bubbles & Inclusions | 1/1 x 0.050 (typ.) |
| Stress Birefringence | Range 0.5nm/cm to 15nm/cm @632.8nm |
| Crystal Orientation | <111>, <100> or Random |
| Density | 3.18 gm/cc |
| Melting Point | 1420°C |
| Poisson Ratio (µ) | 0.260 |
| Knopp Hardness | 158.3 Knoop |
| Crystal Structure | Cubic |
| Young's Modulus [GPa] | 75.8 |
| Shear Modulus [GPa] | 33.77 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
